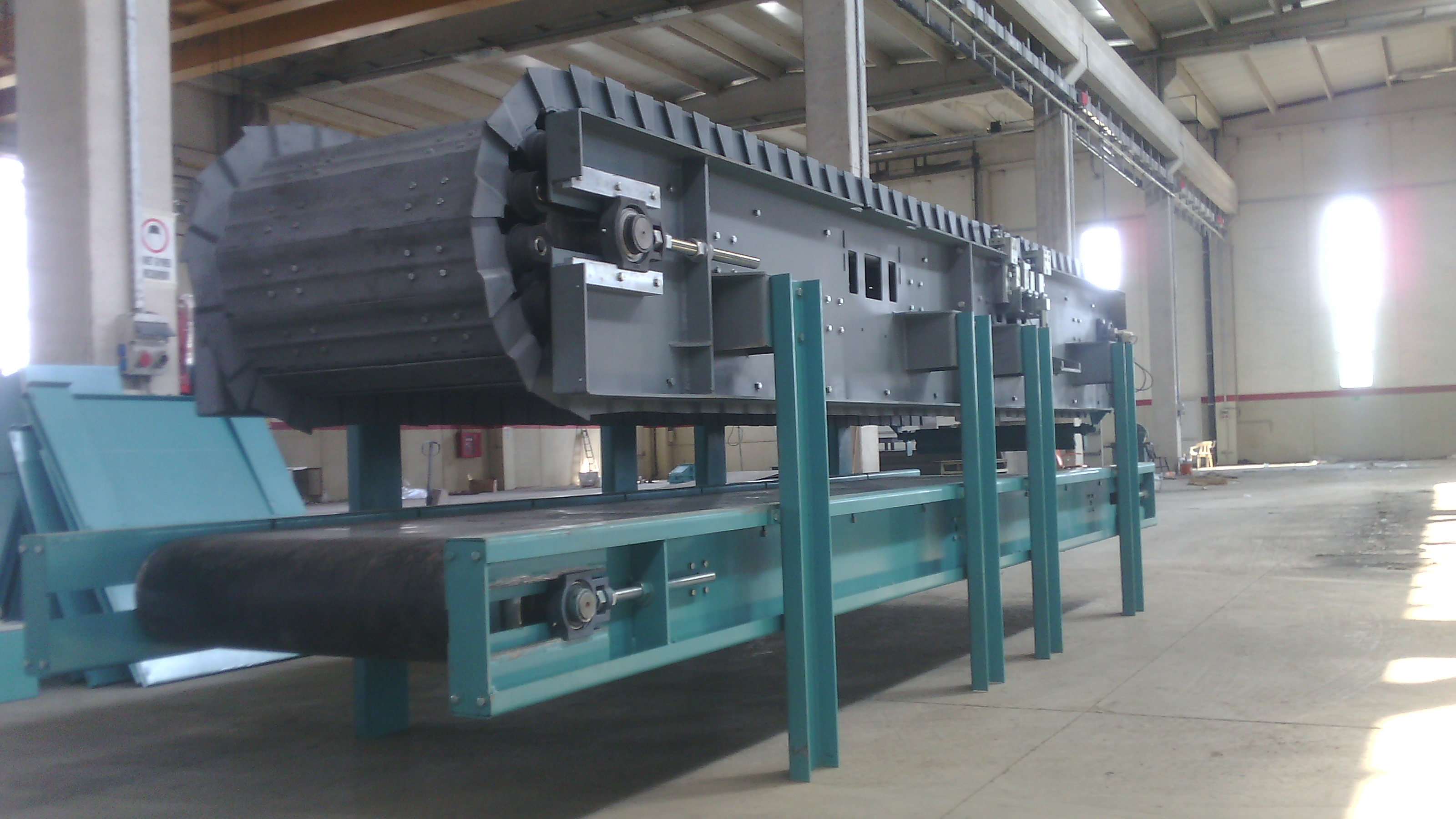

APRON WEIGH FEEDER
It is designed for the transportation of high-temperature materials, especially corrosive, aggressive and non-fluid materials at direct material pouring points under large tonnage hoppers and silo
It is preferred for transporting and feeding abrasive materials such as hot clinker, coal, clay, limestone, aggregate, slag and petroleum coke. The steel apron feeder, with its hanging and single-point dynamic weighing possibility, allows dosing of materials up to 500 tons/hour and maximum 300°C with an accuracy of ± 1%.
| Main areas of use |
|---|
| Cement Industry |
| Energy Industry |
|
Glass Industry
|
| Mining Industry |
| Iron Steel Industry |
| Refineries |
| Chemistry Industry |
| Advantages and Equipment |
|---|
| Wear and temperature resistant pallet system |
| Feed and spill chute design in accordance with the existing system |
|
Observation and maintenance covers for inspection and maintenance
|
| Durable pallet carrying wheel system |
| Automatic lubrication system |
| Main chassis and carrier steels resistant to high tonnage |
| Siemens S7 Series control system |
| Siemens Siwarex U weighing module |
| Specially designed hanger weighing platform |
| Load cell with high weighing precision |
| Optionally, remote or on-site control option of the system |
| Profibus, Profinet, Hardwire communication infrastructure |
