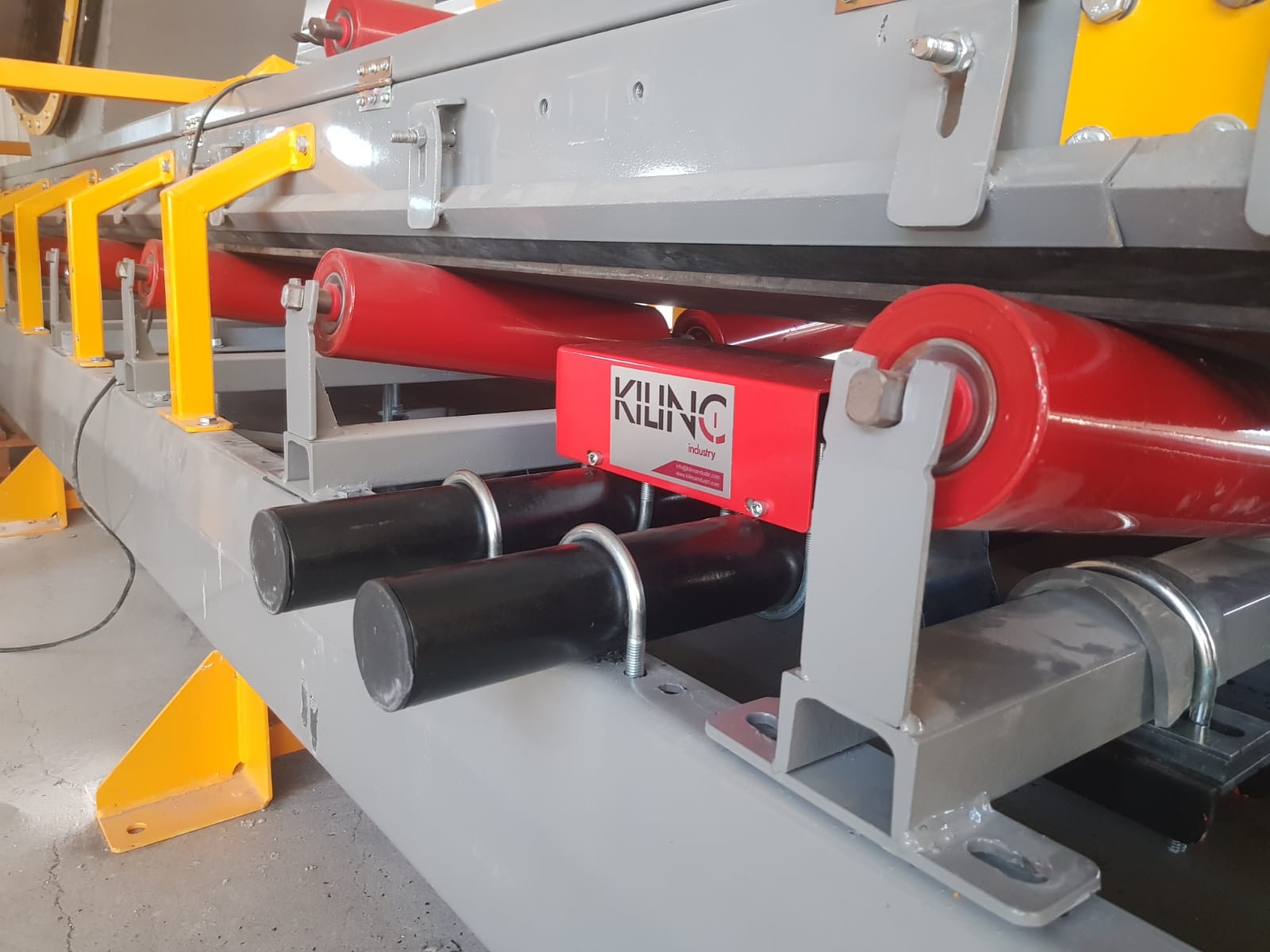

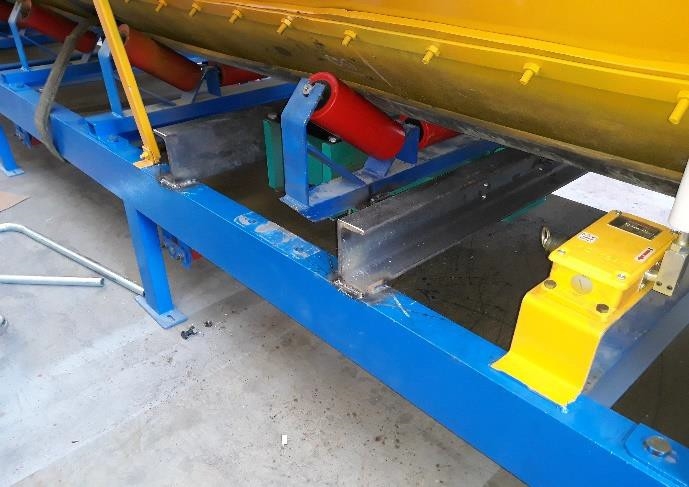

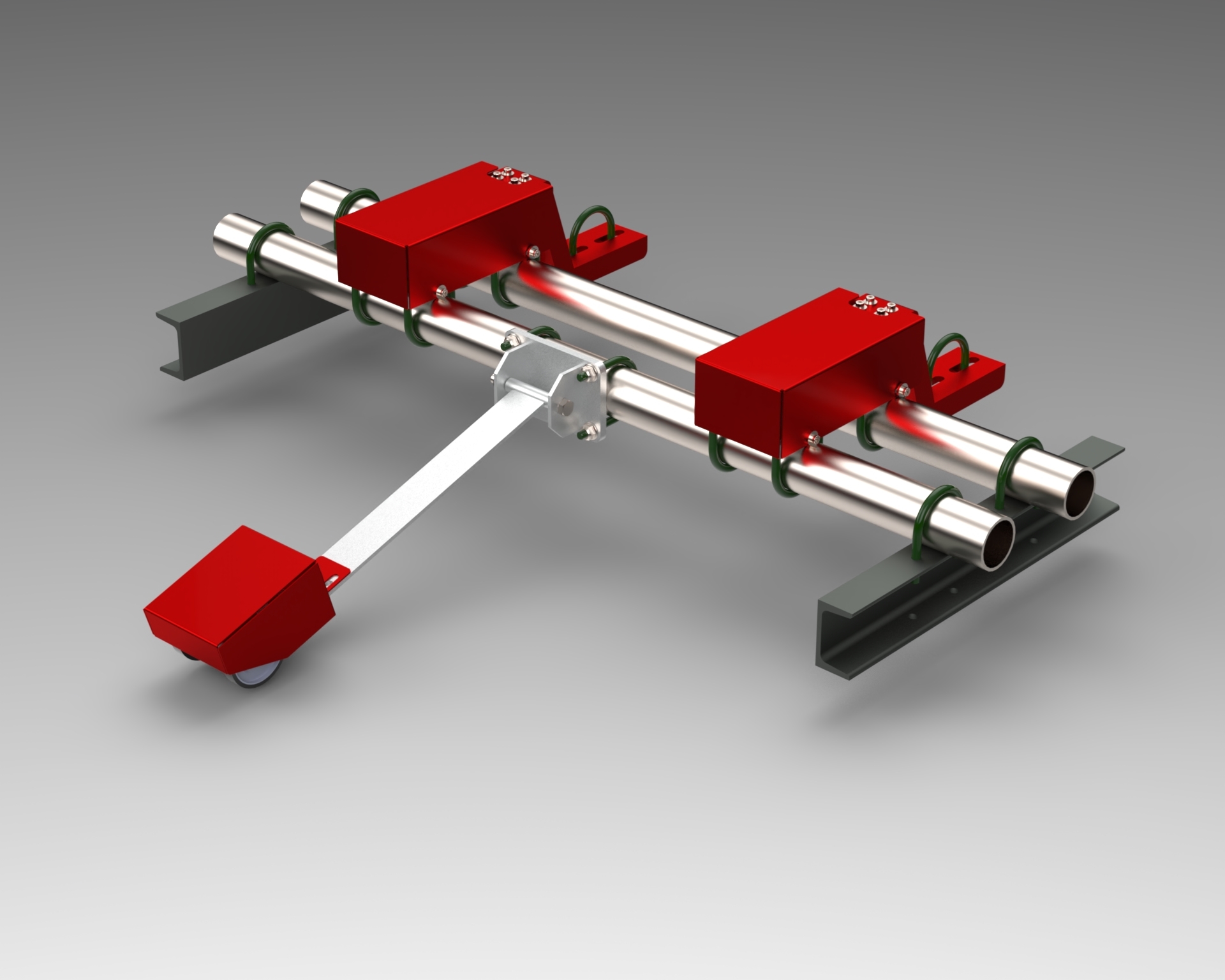

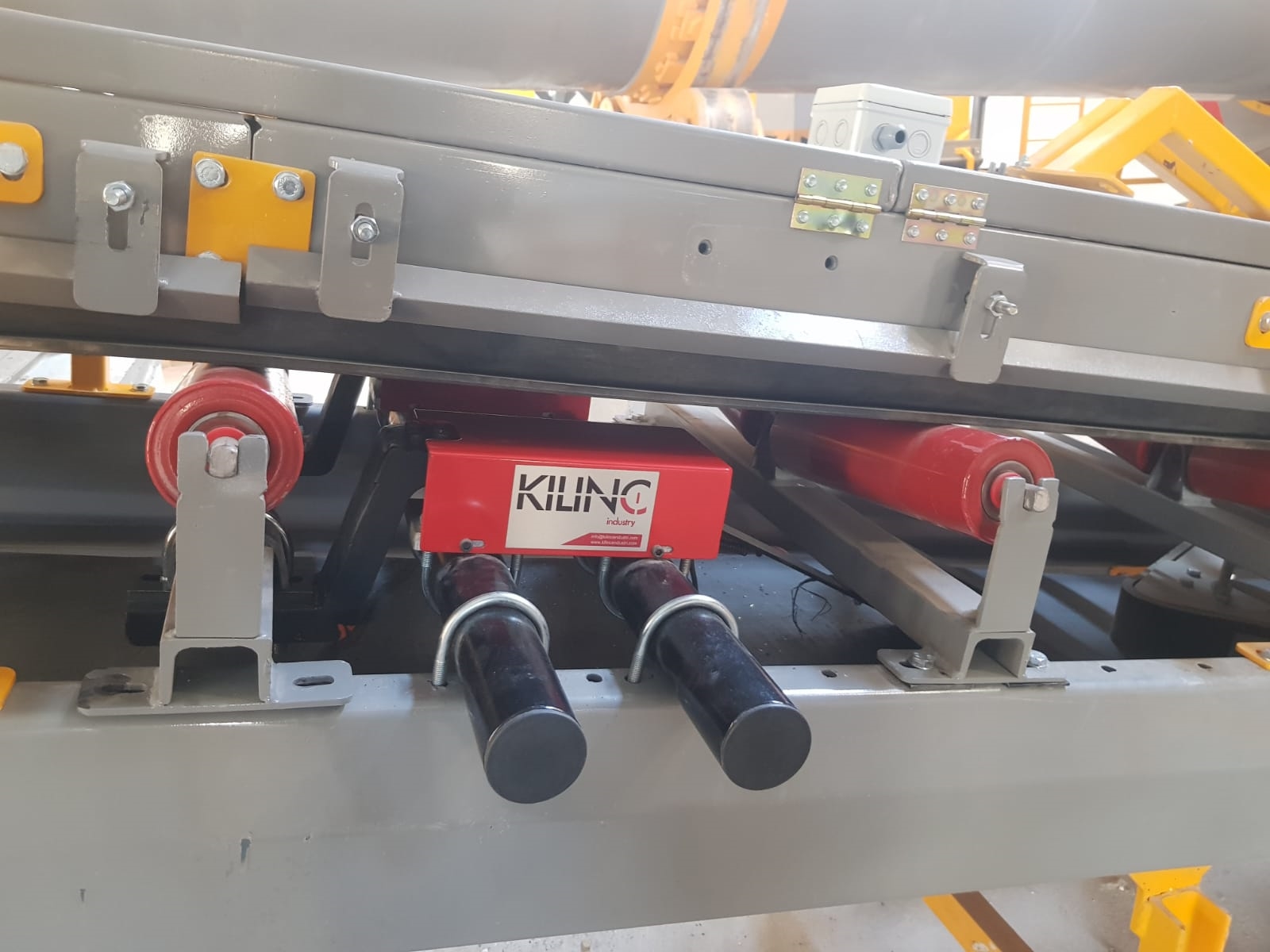

BELT SCALE
Used in industrial facilities to measure the amount of flow of materials carried by belt conveyor in weight
Belt Scales that can be applied on belt conveyors with a carrying capacity of 6000 t/hour can weigh with an accuracy of ± 1%.
|
General usage areas include;
|
|---|
|
Recording of raw material, intermediate and final product quantities,
|
| Applications requiring pre-feed control |
|
Applications requiring tonnage control and load limit alarm
|
|
Packaging systems
|
| Commercial weighing applications |
|
Advantages and Equipment;
|
|---|
|
Easy assembly to the existing conveyor thanks to its compact structure,
|
| Precision weighing load cell |
|

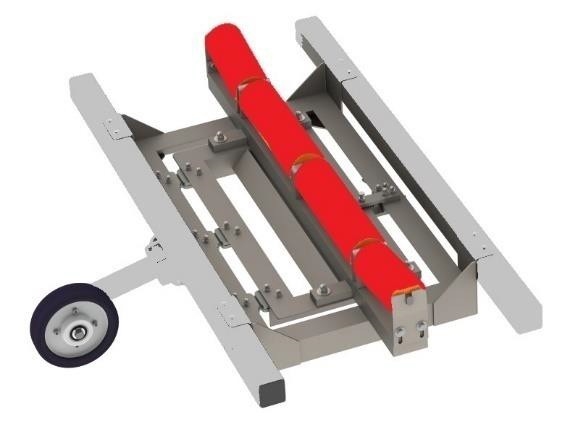

Weighing roll group without balancing
|
|
Terminal box for cable connections
|
| Long-lasting galvanized or epoxy paint application |
| Assembly kit |
| Speed measurement sensor |

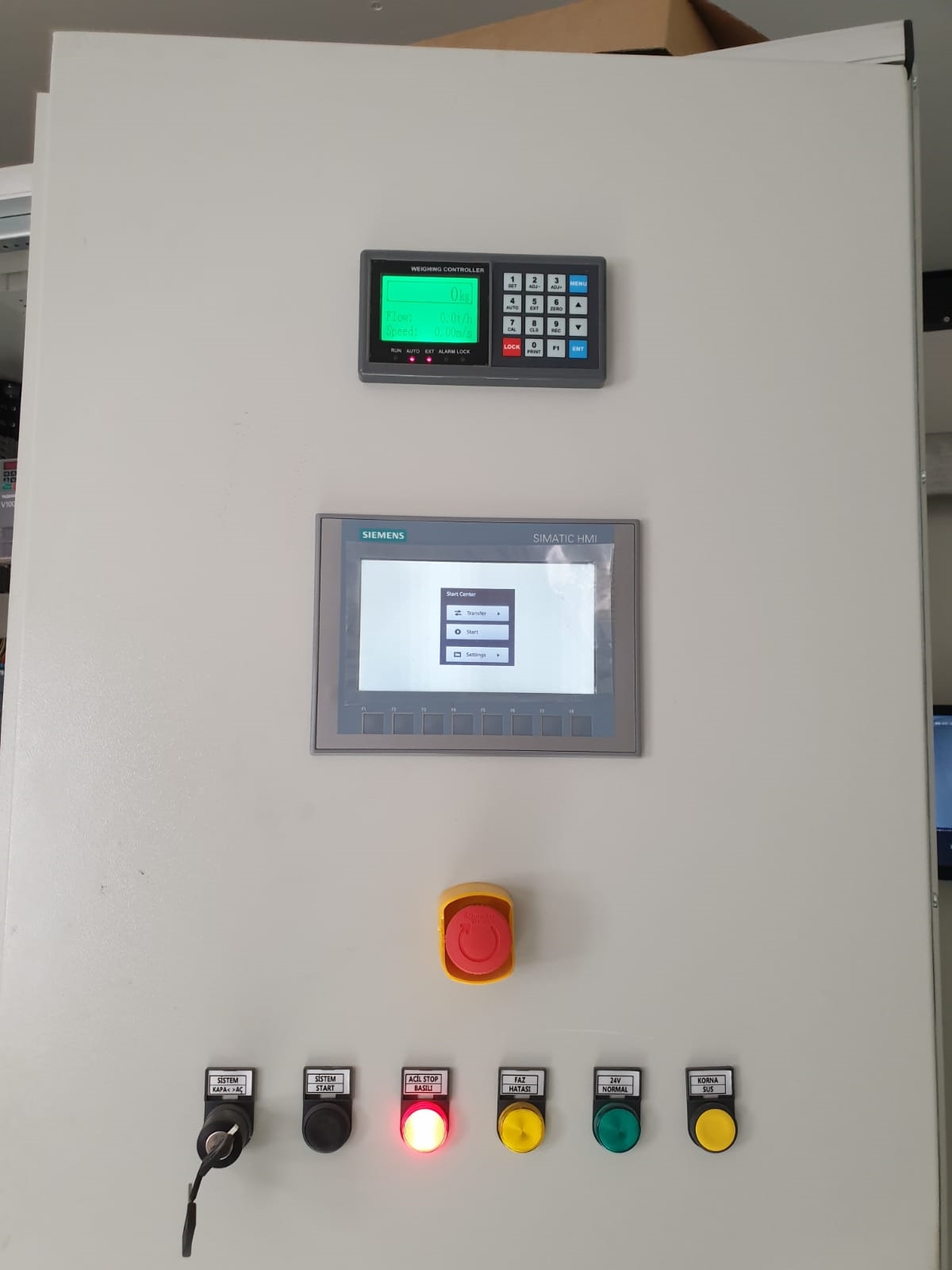

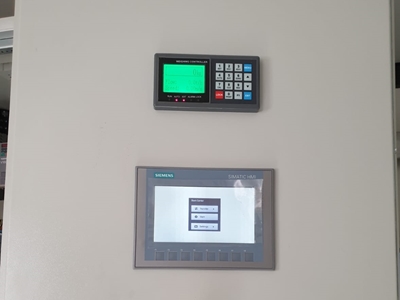

| Easy-to-use controller |
| Profi-bus communication module |
|
Advantages and Equipment;
|
|---|
|
Easy assembly to the existing conveyor thanks to its compact structure,
|
| Precision weighing load cell |
|
Weighing roll group without balancing
|
|
Terminal box for cable connections
|
| Long-lasting galvanized or epoxy paint application |
| Assembly kit |
| Speed measurement sensor |
| Easy-to-use controller |
| Profi-bus communication module |
|

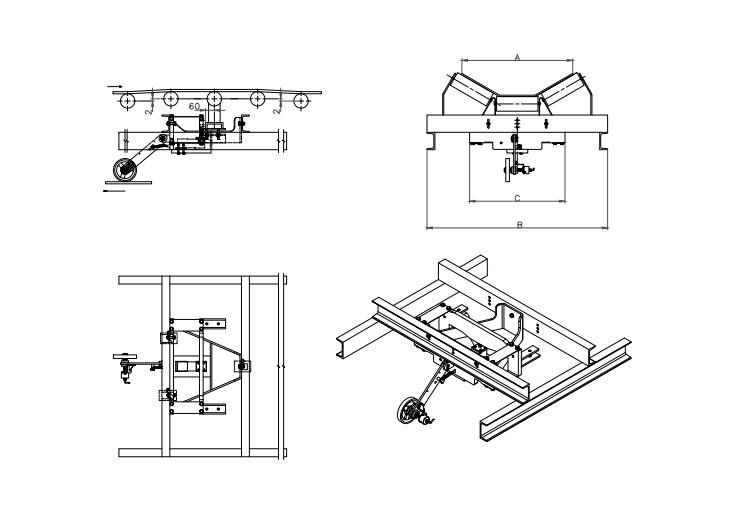

SIZE CARD
|
|---|
| BELT SIZE A (mm) |
400 |
500 |
650 |
800 |
1000 |
1200 |
1400 |
| LENGTH B (mm) |
700 |
500 |
950 |
1150 |
1350 |
1600 |
1800 |
| LENGTH C (mm) |
450 |
450 |
450 |
660 |
660 |
660 |
660 |
