DOSING BELT FEEDER

It is designed to feed the granular materials to the system in accordance with the desired recipe with an accuracy of ± 0.5% - 1% in the capacity range of 0.1 tons to 600 tons / hour.

Dosing Belt Feeder are used especially in Cement Plants, Grinding, Gypsum and Calcite Production Plants, Iron-Steel Factories, Mining and Chemical Plants. The main advantages and equipment of the Dosing Belt Feeder, which directly affects the product quality and production costs of the facilities are as follows;

DOSING BELT FEEDER
Low service and maintenance costs thanks to its robust and quality equipment
Chassis designed and sized in accordance with the existing system,
The use of sealed closed bearings in weighing and carrier rolls that do not require lubrication,
Motor and reducer group with high service factor
Optional exproof instrument selection
Adjustable tensioning system
Capability of dosing with ± 0,5% accuracy
Siemens control system
Selection of belt suitable for high temperature material feed
Remote access via Profi-Bus

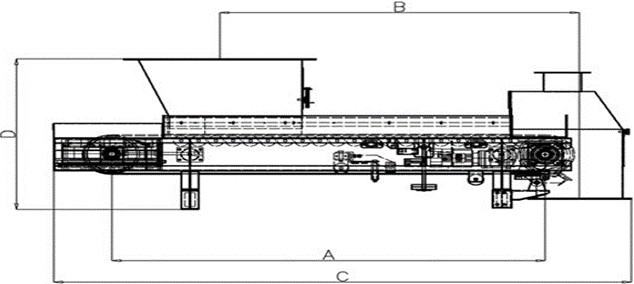

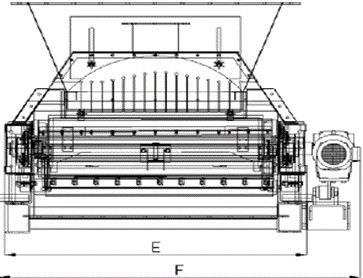

SIZE CARD
Belt Width mm					Distance Pulley to Pulley P/P in mm
	800	1000	1200	1400	1800	2000	2500	3000	3500	4000
A	1200	1400	1650	1850	1800	2000	2500	3000	3500	4000
B	1430	1630	1880	2080	1300	1500	2000	2500	3000	3500
C	800	1000	1000	1200	2700	2900	3400	3900	4400	4900
D	1470	1470	1470	1670	1300	1300	1300	1300	1300	1300
E	1220	1420	1620	1790		2900	3400	3900
F	1500	1700	1900	2220

	P/P 1000	1500	2000	2500	3000	3500	4000	4500	5000	5500	6000
650	*	*	*	*	*
800		*	*	*	*	*	*
1000			*	*	*	*	*	*	*
1200			*	*	*	*	*	*	*	*	*
1400				*	*	*	*	*	*	*	*

DOSING BELT FEEDER

It is designed to feed the granular materials to the system in accordance with the desired recipe with an accuracy of ± 0.5% - 1% in the capacity range of 0.1 tons to 600 tons / hour.
