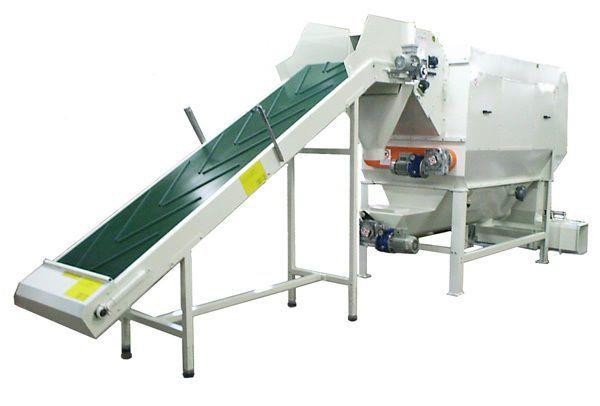

PACKAGE SHREDDER

The main design purpose is to separate the packaged products from their paper or plastic bags and feed them to the return line.

While the product taken from the cut and shredded bag is supplied back to the system, the shredded bags are collected in a chamber for use in recycling. The system, which is generally used for the recycling of products outside the standard weighing tolerances after packaging, is also used for the shredding the intermediate packages in production lines depending on customer request.



It is used in many industrial facilities as well as cement, mining and chemical plants. Equipment with a maximum capacity of 300 packs/hour is offered to the service of its customers, especially by leak-proof and washable design for the separation of chemical products. Equipment of package shredder;



PACKAGE SHREDDER
Bag and pack shredder blade system
Insulation system preventing dusting
IP65 protected panel and operator panel with touch screen
Control System
Emergency notification
Automatic and manual operating modes
Profibus, Profinet, Hardwire communication infrastructure

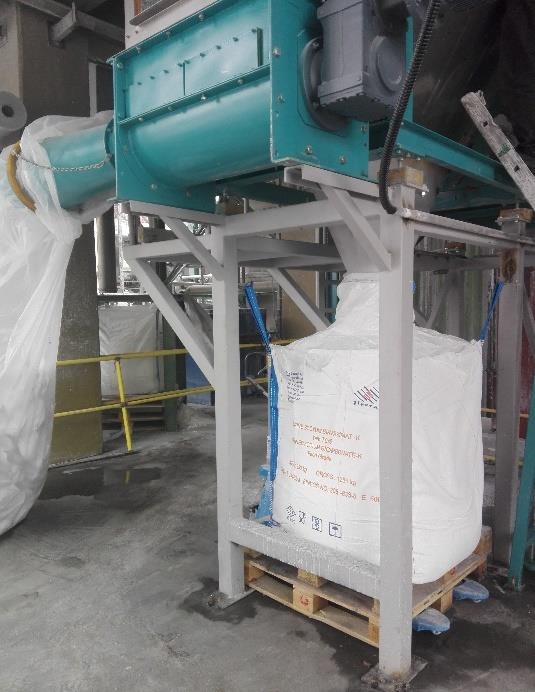

The bag feed band is designed in dimensions suitable for the plant layout and the size of the bag to be shredded. The product separated from the shredded bags is carried to the system for refilling by the screw conveyor after product separation. Another application is filling and transporting the product to the Big-bag bag connected to the machine product outlet line.
