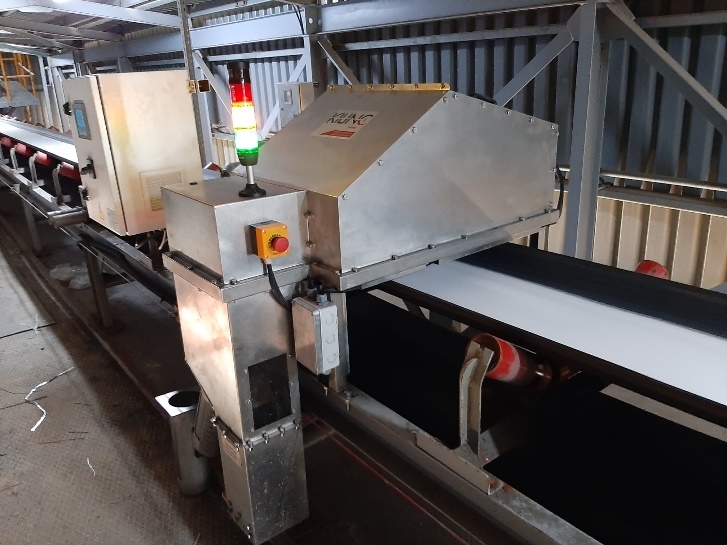

SAMPLER ON CONVEYOR BELT
It is used to collect samples from the flowing material carried on the belt conveyor. Sampling shovel and rotational speed are set according to the desired sample amount, and samples are taken from the belt as much as the required amount in one go. Samplers produced by KILINÇ INDUSTRY
It can take samples from conveyor belts between 500 mm and 1600 mm width, in the capacity range of 1 t/hour to 1000 t/hour and speeds up to 6 m/second. It is used in Cement, Mining and Chemical plants, especially Coal Power Plants.
| Advantages and Equipment |
|---|
| Easy assembly to the existing conveyor chassis thanks to its compact structure |
| Long life and low service cost thanks to the hammer system designed for the belt tonnage |
|
Capability to collect samples in different amounts
|
| To sampling ability in various amount |
| Top covering and insulation parts in order to prevent dust |

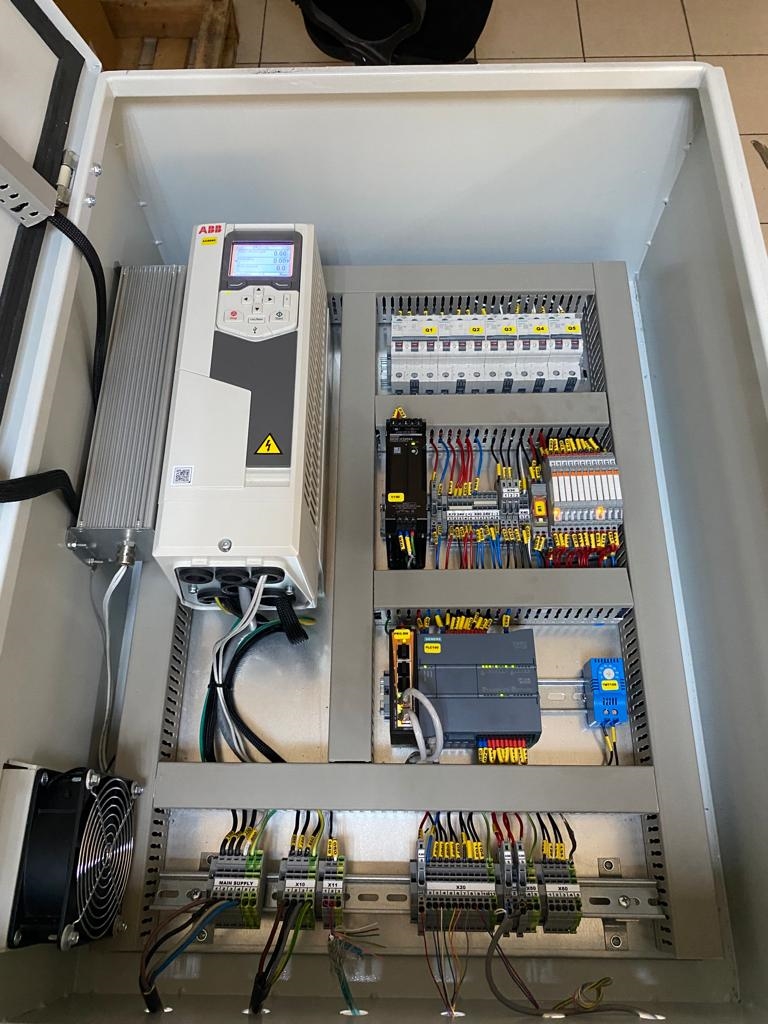

| IP65 protected panel |
| Adjustable automatic and precise operation thanks to PLC system |
| Profibus communication infrastructure |
| Warning sensors for work safety |
