SOLID FLOW METER

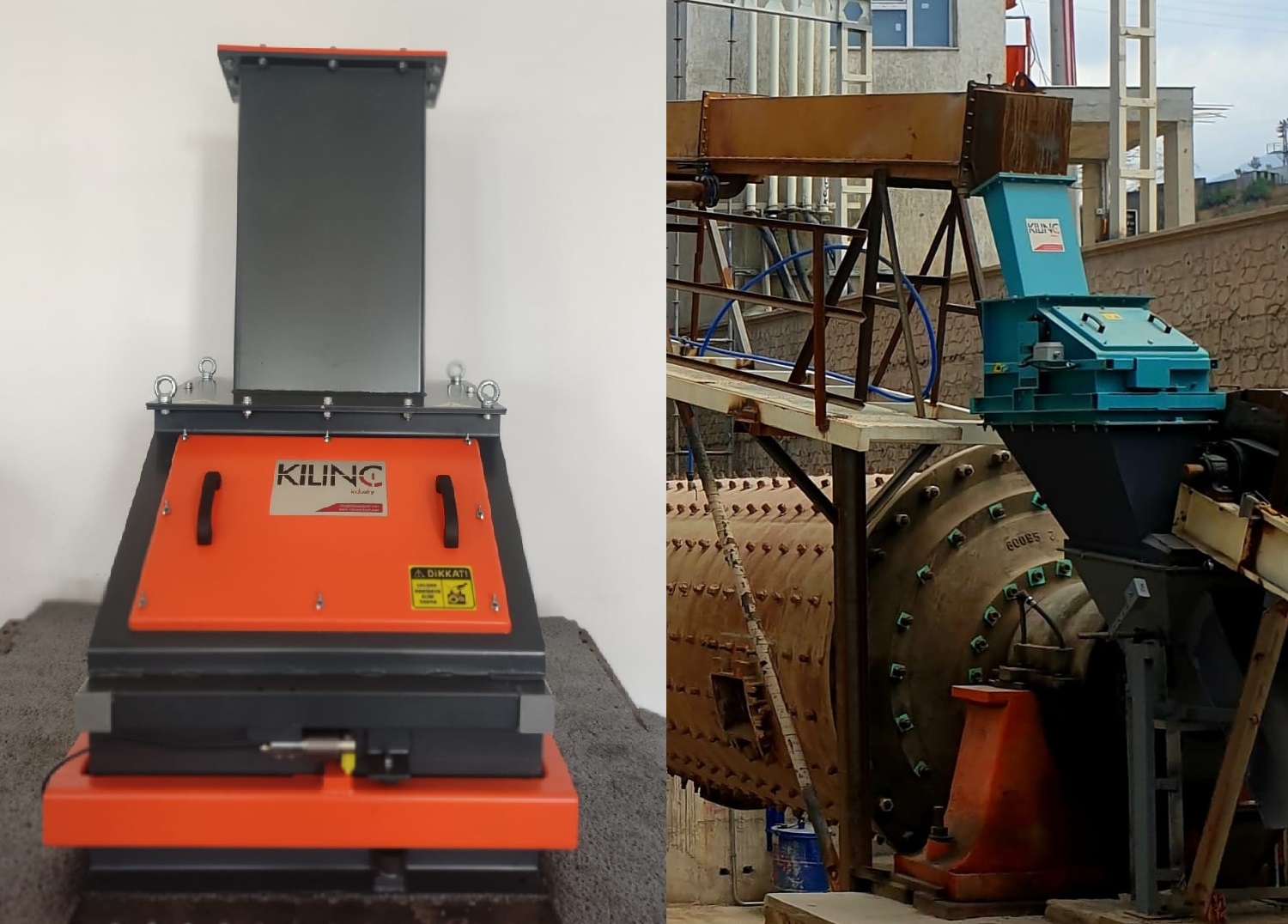

The Solid Flow Meter, which can weigh precisely in uninterrupted and free flowing granule and powder material measurements, operates on the principle of converting the force created by the material flowing from the feed chute onto the weighing plate to the flow rate with the help of the load cell
The Solid Flow Meter Scale used for the measurement of flows from 1 t/hour to 1000 t/hour flow can measure with an accuracy of ± 2%. It is used for materials up to 30 mm in flow rate and material quantity determinations.
It is also preferred in the measurement of many materials such as ground coal, fly ash, raw material, fertilizer, which are used to measure the amount of product from product separators, especially in cement, gypsum and calcite plants after grinding in the mill.
| Advantages and Equipment |
|---|
| Weighing hot material up to 120°C |
| Feed chute that can be designed according to the existing system |
| Dust insulation and sealing elements |
| Assembly and connection kit |
| Maintenance-free load cell module |
| Control system with optional indicator or PLC |
| Standard profi-bus communication module |

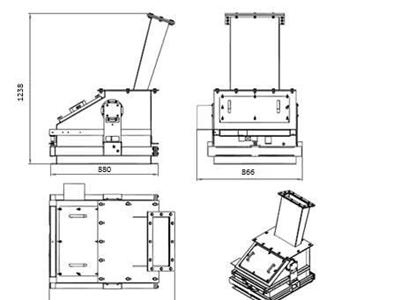

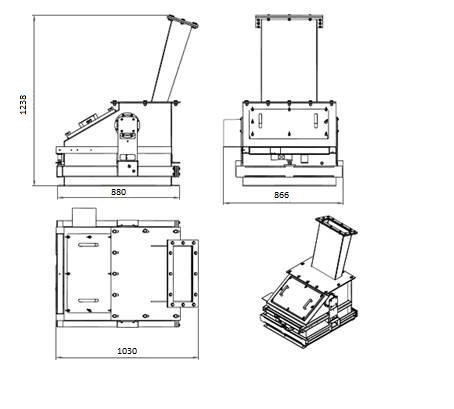

| CAPACITY(m³/h) | FLOW RATE | WEIGTH | AMBIENT TEMPERATURE | MATERIAL TEMPERATURE | MATERIAL GRAIN STRUCTURE | GRAIN SIZE |
|---|
| 400 |
Max. 400 m3/h |
~170 kg |
-30°C - 60°C |
Max. 120°C |
Dust or Granule (liquid) |
Max. 10mm (30mm for one particle) |
| 750 |
Max. 750 m3/h |
~255 kg |
-30°C - 60°C |
Max. 120°C |
Dust or Granule (liquid) |
Max. 10mm (30mm for one particle) |
| 1250 |
Max. 1250 m3/h |
~410 kg |
-30°C - 60°C |
Max. 120°C |
Dust or Granule (liquid) |
Max. 10mm (30mm for one particle) |
